Irrigation Valves

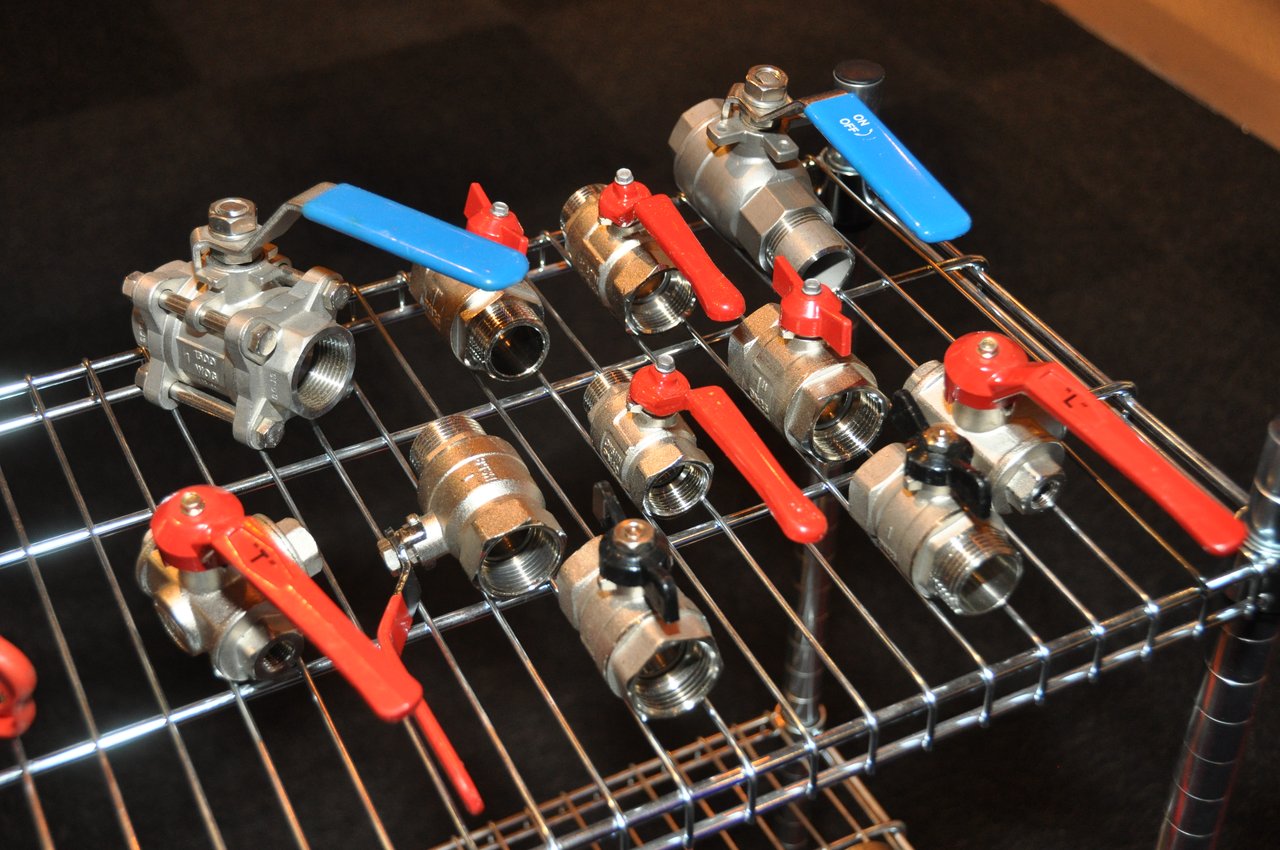

Stainless Steel Ball Valve
This stainless steel ball valve offers superior durability and corrosion resistance for demanding irrigation applications. Full port design ensures minimal pressure loss.
Certified materials — ISO-grade PVC compound
Custom runs available — tell us diameter, length, color
Bulk shipping — freight handled in-house
Stainless Steel Ball Valve - Premium Quality
The Stainless Steel Ball Valve represents the gold standard in irrigation flow control. This premium valve delivers exceptional performance in the most demanding conditions.
Key Features:
- 316 Stainless Steel: Maximum corrosion resistance for harsh environments
- Full Port Design: No flow restriction for optimal system performance
- Quarter-Turn Operation: Quick and reliable open/close
- Blowout-Proof Stem: Enhanced safety under pressure
- ISO Mounting Pad: Ready for automated actuators
Technical Specifications:
- Size Range: 1/2" to 4" (15mm - 100mm)
- Pressure Rating: PN16 (16 bar)
- Body Material: AISI 316 Stainless Steel
- Seat Material: PTFE (Teflon)
- Temperature Range: -20°C to +180°C
Applications:
- High-pressure irrigation systems
- Chemical injection systems
- Food-grade water applications
- Marine and coastal irrigation
